Bolt-in Mustang Roll Bar ~ 2005-14 S550+

Watson Racing is proud to offer top of the line Mustang Roll Cage

 4-point Mustang Bolt-in Roll Bars


Mustang Roll Bar

Shop now - Buy Racing Parts Online!

Part number is WR_BOLTINCAGE
(click to buy online)

Mustang Roll Bar Drag Race, Road Race
strong-roll-barWR-4-point-rollbar-installation

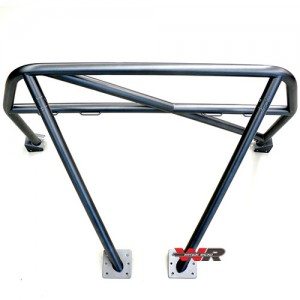

Quite simply the finest 4-point Mustang roll bar on the market. After extensive engineering,
Watson Racing is thrilled to offer its’
Bolt-in 4-Point Mustang Roll Bar.




What makes this 4-Point Bolt in Mustang Roll Bar different?

  • Quick-In and Quick-Out design. Perfect for those of you who are part-time racers and don’t want a full-time roll bar. Uniquely-engineered bolt-in mounting system stays hidden and mounted in the car. Unbolt the Watson Mustang Roll Bar from INSIDE your car for quick removal and re-installation.

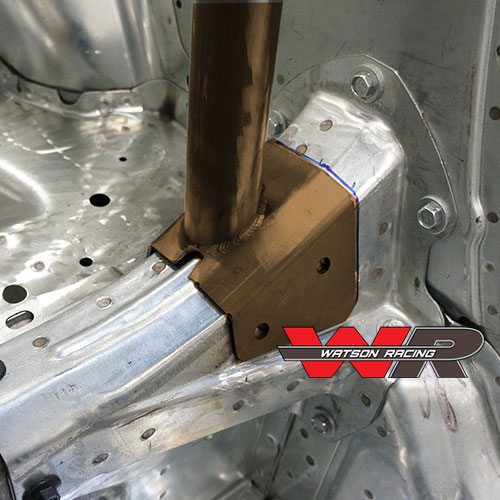

  • Mounts to the FACTORY corner gussets.  Other 4-point roll bars and roll cages in the market either bolt to the weak sheet metal floor behind the front seats (dangerous!), or replace the factory corner gussets with their own design. Why replace what Ford has already engineered and crash-tested?  This is a critical strength point in your Mustang, and we did not want to replace it. The Watson Racing 4-Point Mustang roll bar bolts to this factory, high-strength gusset for maximum safety.
  • Minimal trim panel modification. With our 4-Point Roll Bar’s quick-in, quick-out design, you don’t have to cut your trim panels AT ALL if you don’t want to. If you’d rather keep the trim panels and Roll Bar permanently mounted in the car, the modifications required to the trim panels are minimal. No cutting your time panels in half with our bar!
  • Minimal-bend design. Bends in tubes reduce a bar’s effectiveness and safety. We kept the number of bends to a minimum in order to maximize safety.  Where bends are required, we use a CNC precision mandrel bending process to maintain strength.
  • We sweat the details: 100% TIG-welded 1.75”x.120”-wall DOM tubing. 100% powder coated. Shoulder harness retention loops, standard. Welded/fixed harness bar and diagonal bar, standard. Precision-machined tube joints for high strength on rear support tubes- no through-bolting here, and notice the plug-welds! Zinc-plated heavy M10 metric fasteners included.
  • Full seat travel. Since the Watson Mustang Roll Bar mounts on top of the factory corner gussets (next to rear seat bottom cushion), the front seats are free to slide all the way back and maintain a comfortable driving position.
  • Bolts to the Ford-engineered corner gussets with heavy 1/8″thick steel plate. Don’t risk the strength of your car to flimsy aftermarket gussets.
  • Precision-machined tube joints for rear two supports. TIG welded 360 degrees + plug welded. A seriously strong joint that is far superior to through-bolted slip-fit tubes.


Want more product information?
Check out our [click-n-print] informational sheet.
Step-by-Step INSTRUCTIONS

    • Shoulder harness retainers keep your belts in place.
    • Constructed of heavy duty 1.75″ x .120″ DOM steel tube.
    • Precision CNC Mandrel bending provides consistency & an exact fit every time.
    • Standard fixed harness bar and diagonal cross brace.
    • Fewer bends provide superior strength over other designs.
    • Fully TIG Welded.
    • Fully powder coated Watson Racing Carbon Gray

WR-road-race-rollbarsrollbar_installed
888.WAT.RACE (928.7223)

** This part does not qualify for free shipping,

Flat rate shipping cost in the continental U.S.
– Approximate shipping weight is 73 lbs.
